6mm/284 Winchester Full Size Bushing Die

Redding # 77414 |  Item # 076-77414
  • 6mm/284 Winchester Full Size Bushing Die
  • redding-reloading
Status: Out of Stock
  • This item is out of stock and is not available for backorder.


6mm/284 Winchester S Full Size Bushing Die

Product Overview

Midsouth now offers the 6mm/284 Winchester Type S Full Size Bushing Die. This die allows you to full length resize while maintaining precise control of the case neck in one operation. The 6mm/284 Winchester has an adjustable decapping rod allows you to adjust the bushing position, sizing only part of the neck length when desired. These Dies use the same .001" bushings that the neck dies use for interchangeability.


The 6mm/284 Winchester Type S Full Size Bushing Die gives you the precise adjustable neck tension to ensure you have the best possible ammunition from your reloading bench. The Full Size Bushing die will size your brass back to SAAMI specifications. Specifications and Features:

  • Adjustable Decapping Rod
  • Self Centering Bushing
  • All Type S (except 17 and 20 Cal.) dies are supplied with both the standard size button and a decapping pin retainer
  • Removing the bushing and all internal parts allows the full bushing die to be used as a body die

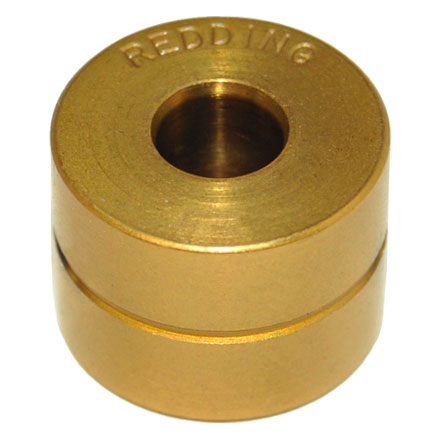

*NOTE Bushings not included. The easiest way to determine the proper bushing size for your cartridge is to measure the neck diameter of several loaded or dummy rounds. (These dummy cartridges can be loaded with your old set of dies or a borrowed set.) Then, simply subtract 0.001" from the cartridge that had the smallest average measurement. This will allow for a slight amount of spring back and create a proper press fit for the bullet.

*Please note* All defective returns must be made through Redding directly. You can visit their website by Clicking Here or call them at (607) 753-3331.
